ISOPak自動裝填層析柱

品牌：Merck Millipore

產地：德國

產品簡介

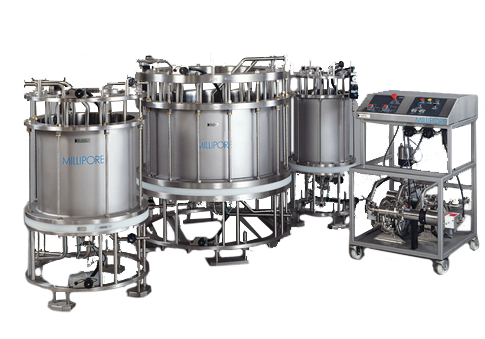

millipore也可以提供可自動裝填的層析柱---isopak層析柱

isopak層析柱是在moduline系列層析柱基礎上增加相應的控制閥門以及管道，從而可以在不打開頂層流體槽的情況下進行

自動裝柱與卸柱的快速與清潔，也提高了層析柱的重現性，非常適合于藥物及生物技術工業的中試和大規模純化工作。

Column Tube Diameter	440, 630, 800, 1000 mm
Column Length	50 or 100 cm
Materials of Construction (Column)
Column tube:	Acrylic or 316L stainless steel
Flow cell:	Polypropylene
Bed support:	316 L stainless steel, 20 µm mesh
Seals:	EPDM, Chemraz®
Metal parts:	316L stainless steel
Materials of Construction
(Slurry Transfer Skid)
Pipework:	316L stainless steel
Pump diaphragm:	PTFE
Pump valves:	PTFE, polypropylene, stainless steel
Seals:	EPDM
Hoses:	Food grade PVC
Slurry Valves
SV1:	For 440 – 800 mm diameter columns
SV2:	For 1000 mm diameter column
Slurry Transfer Skids
STS-I:	1 in. pipework for 440 – 1000 mm diameter columns
Maximum Operating Pressure	3 bar (45 psig)
Operating Temperature	2 – 30 °C
Regulatory	All materials in contact with the process stream meet regulatory requirements.

訂貨信息：

IsoPak Column - Acrylic Tube
產品目錄編號icon	長度icon	直徑icon	橫截面積icon	柱床高度icon	柱床體積icon
94101321	50 cm (19.7 in.)	100 cm (39.4 in.)	7854 cm²	50–500 mm	39–393 L
94441322	1 m (3.3 ft.)	44 cm (17.3 in.)	1520 cm²	500–1000 mm	76–152 L
94631321	50 cm (19.7 in.)	63 cm (24.8 in.)	3119 cm²	50–500 mm	16–156 L

IsoPak Column - Stainless Steel Tube
產品目錄編號icon	長度icon	直徑icon	橫截面積icon	柱床高度icon	柱床體積icon
94443321	50 cm (19.7 in.)	44 cm (17.3 in.)	1520 cm²	50–500 mm	8–76 L
94443322	1 m (3.3 ft.)	44 cm (17.3 in.)	1520 cm²	500–1000 mm	76–152 L
94633321	50 cm (19.7 in.)	63 cm (24.8 in.)	3119 cm²	50–500 mm	16–156 L
94803321	50 cm (19.7 in.)	80 cm (31.5 in.)	5027 cm²	50–500 mm	25–251 L
